RFN貼片微波負載電阻器AlN
RFN Chip microwave resistors
● 特征 featires
終端負載電阻器，使用在具有高功耗的高頻電路中，安裝在適當?shù)纳崞魃�，在高頻功率下具有低的駐波比。
符合環(huán)保RoHS要求。
These high power devices are designed to dissipate power in R.f.Circuits when mounted to an appropriate heat sink. The terminatons provide a low VSWR under maximum power condition. RoHS conformity with the requirements of environmental protection.
● 材料
|
基片:氮化鋁 Substrate:Berylium Oxide ceramic |
|
蓋板:氧化鋁 Cover:Alumina ceramic |
|
導電膜:厚膜 Resistive element:Thick film |
|
引出帶:鍍錫（銀 金）銅帶 Terminal tensile:Copper Sn (Ag Au) |
●技術(shù)說明 TECHNICAL SPECIFICATIONS
|
標稱阻值 (Resistance value) 50Ω |
|
阻值精度 (Resistance tolerance) ±2% |
|
工作頻率 (Frequency) DC-3GHz |
|
駐波比 (VSWR) 1.1：1 |
|
工作溫度 (Work temperature) -55~ 125℃ |
● 尺寸 Size
● RFN

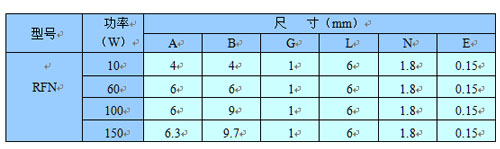

● 外形尺寸 DIMENSIONS
